Plastic Acid Alkaline Resistant Chemical 0.75kw Agitator 200 L Mixing Tank
Description :
The PE mixing tank comprises a rotationally molded container and a liquid mixer. At the tank's top sits a perforated platform housing a mixer. When paired with a metering pump, it creates a comprehensive dosing and mixing system, ideal for storing, dissolving, and blending a wide range of pharmaceuticals and liquids.
Mixer tank with agitator can be used in most working conditions. The shaft can be customized
Dosing tanks incorporate a raised section to allow the easy installation of a chemical dosing agitator to the upper part of the tank
imported LLDPE raw materials ,one-short rotomolding ,hygienic , lightweight,sturdy, corrosion-resistant , shock-resistant and impact-resistant
it is used in water treatment,enviromental proteintion, electronics , chemical , food and pharmaceutical industries .
Specification
Product
number | capacity |
diameter | vertical height | total height | caliber | wall thicknes | Suitable mixer power |
| Flat -100L | 100L | 460 | 730 | 780 | 150 | 4 | 0.37KW-380V/220V |
| Flat -200L | 200L | 560 | 860 | 910 | 150 | 4 | 0.55KW-380V/220V |
| Flat -300L | 300L | 710 | 800 | 940 | 200 | 5 | 0.55KW-380V/220V |
| Flat -500L | 500L | 840 | 910 | 1060 | 240 | 6 | 0.75KW-380V/220V |
| Flat -750L | 750L | 1040 | 900 | 1110 | 380 | 6 | 0.75KW-380V/220V |
| Flat -1000L | 1000L | 1040 | 1190 | 1360 | 380 | 6 | 1.1KW-380V/220V |
| Flat -1000Lshort | 1000L | 13000 | 830 | 1030 | 380 | 6 | 1.1KW-380V/220V |
| Flat-1200L | 1200L | 1220 | 1030 | 1200 | 380 | 7 | 1.1KW-380V/220V |
| Flat-1500L | 1500L | 1220 | 1280 | 1450 | 380 | 7 | 1.1KW-380V/220V |
| Flat-2000L | 2000L | 13000 | 1520 | 1700 | 380 | 7 | 1.5KW-380V/220V |
| Flat -2000Lshort | 2000L | 1550 | 1060 | 1250 | 500 | 7 | 1.5KW-380V/220V |
| Flat -3000L | 3000L | 1550 | 1600 | 1790 | 500 | 8 | 1.5KW-380V/220V |
| Flat -5000L | 5000L 220V | 1750 | 2080 | 2300 | 500 | 9 | 2.2KW-380V/220V |
Dosing tanks incorporate a raised section to allow the easy installation of a chemical dosing agitator to the upper part of the mixing tank .

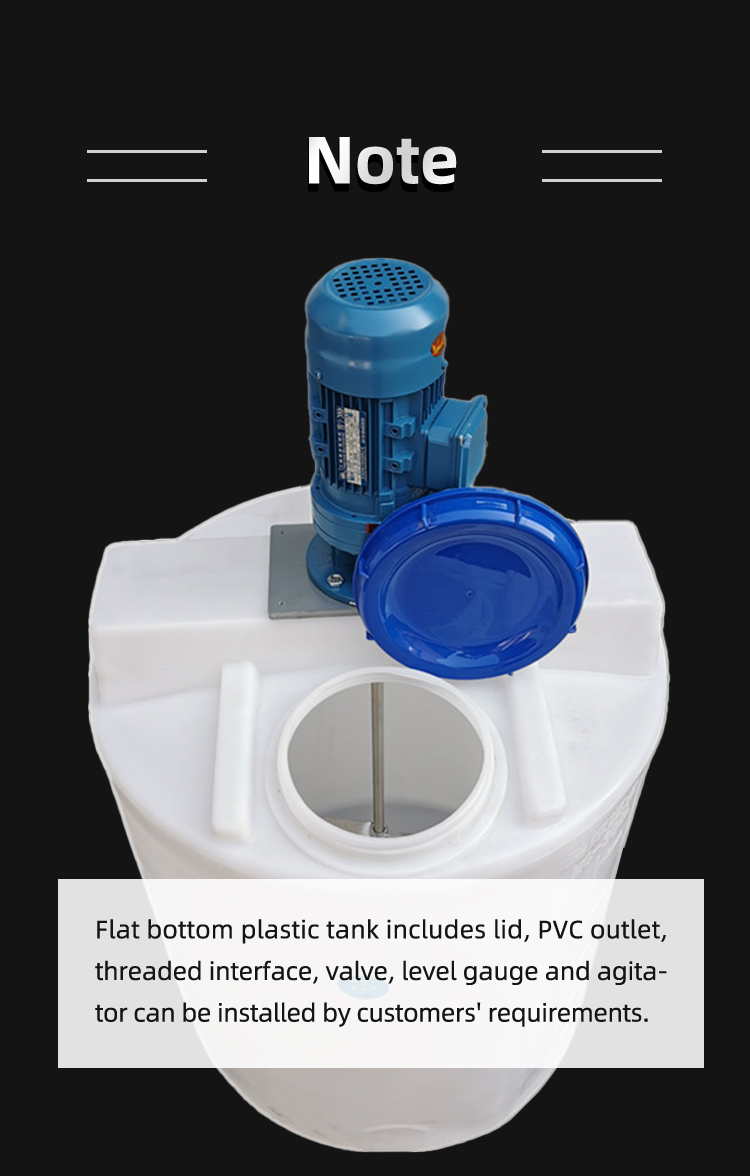

flat bottom plastic tank includes lid , PVC outlet , threaded ubterface , valve , level gauge and agitator can be installed by customer's requirements .
available in either a natural finish or black color , with vertical volume graduations (liters) included to the tank side .
Imported LLDPE raw materials,one-shot rotomold-
ing,hygienic,lightweight,sturdy,corrosion-resistant,shock-resistant and impact-resistant.It is used inwater treatment,environmental protection,electron-ics,chemical,food,and pharmaceutical industries.
